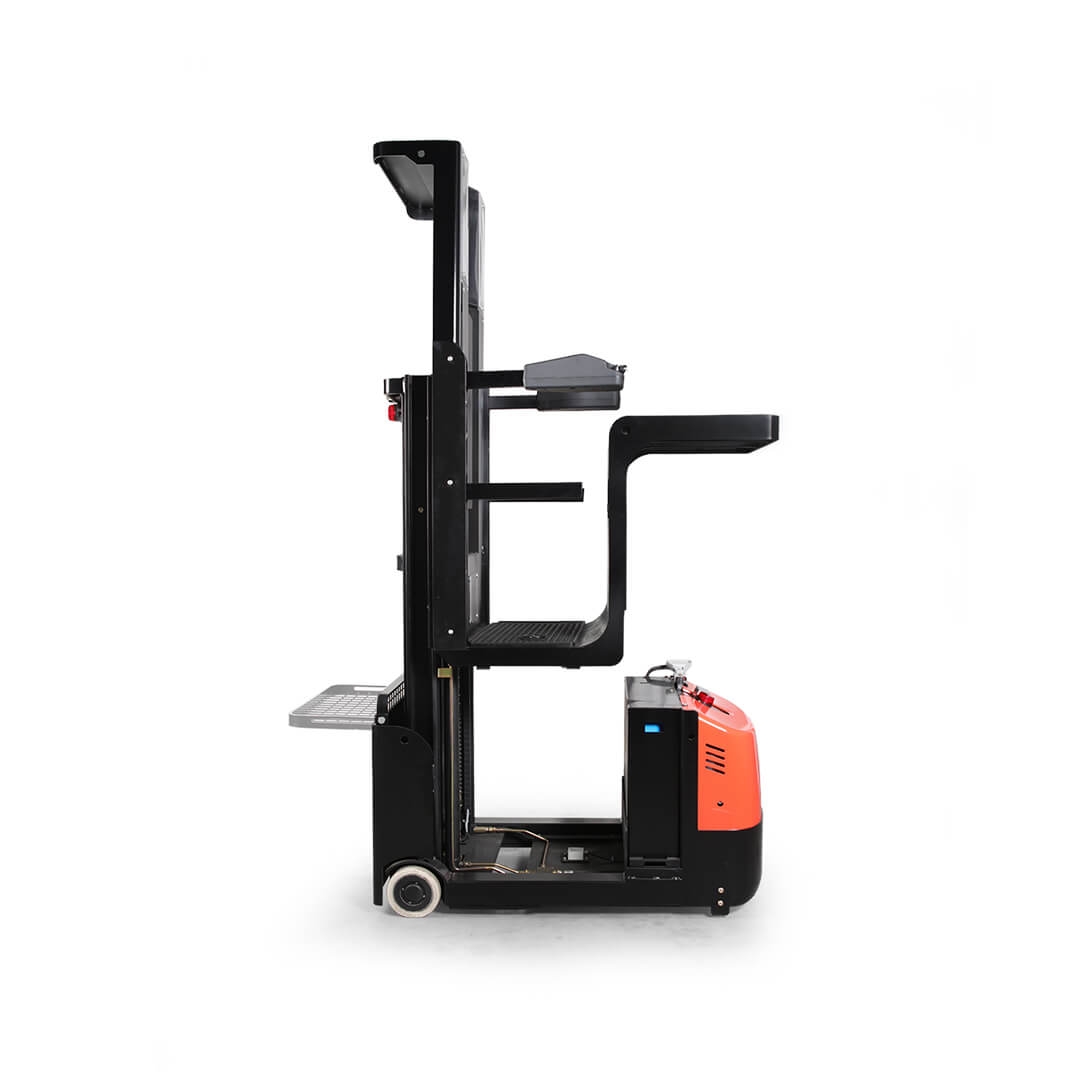

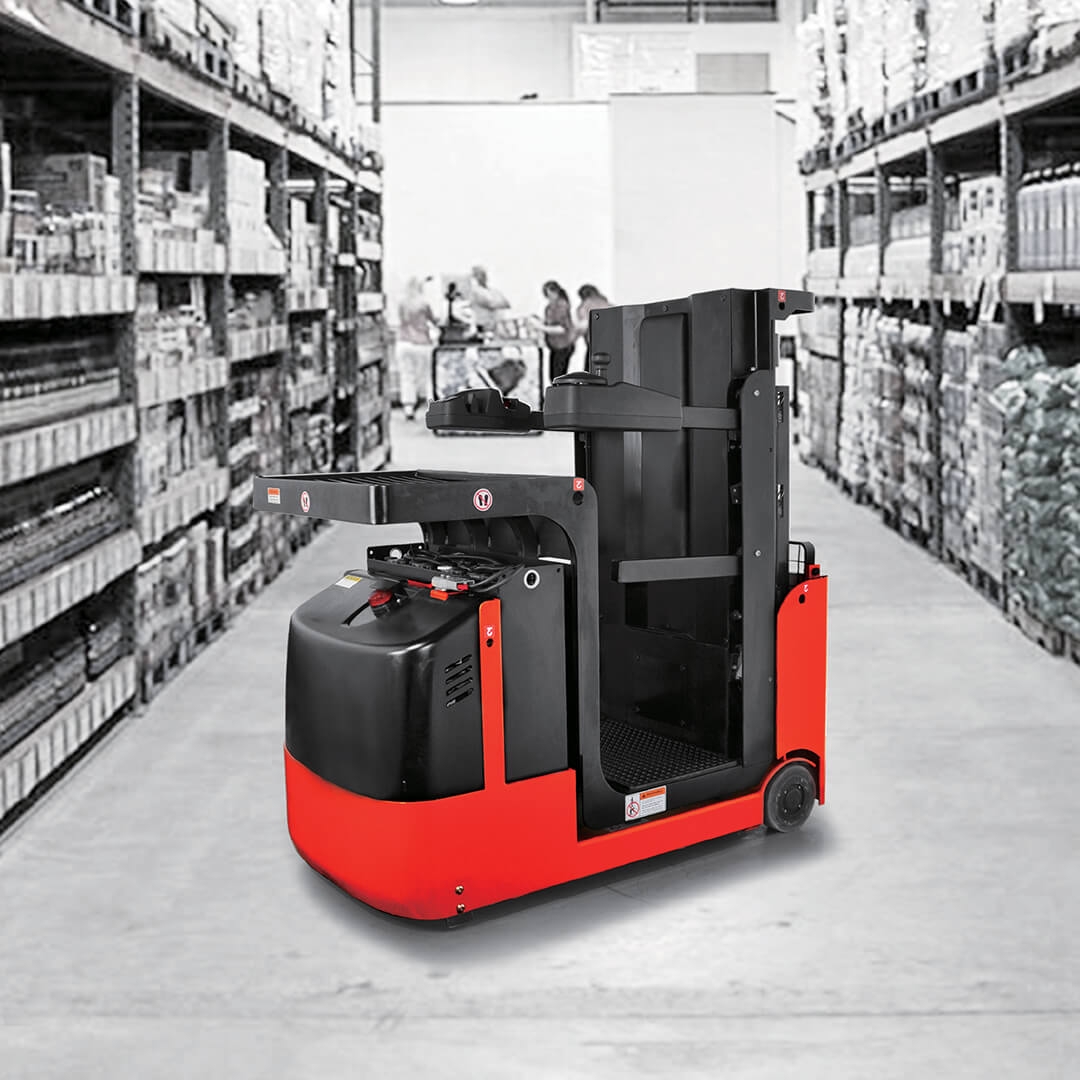

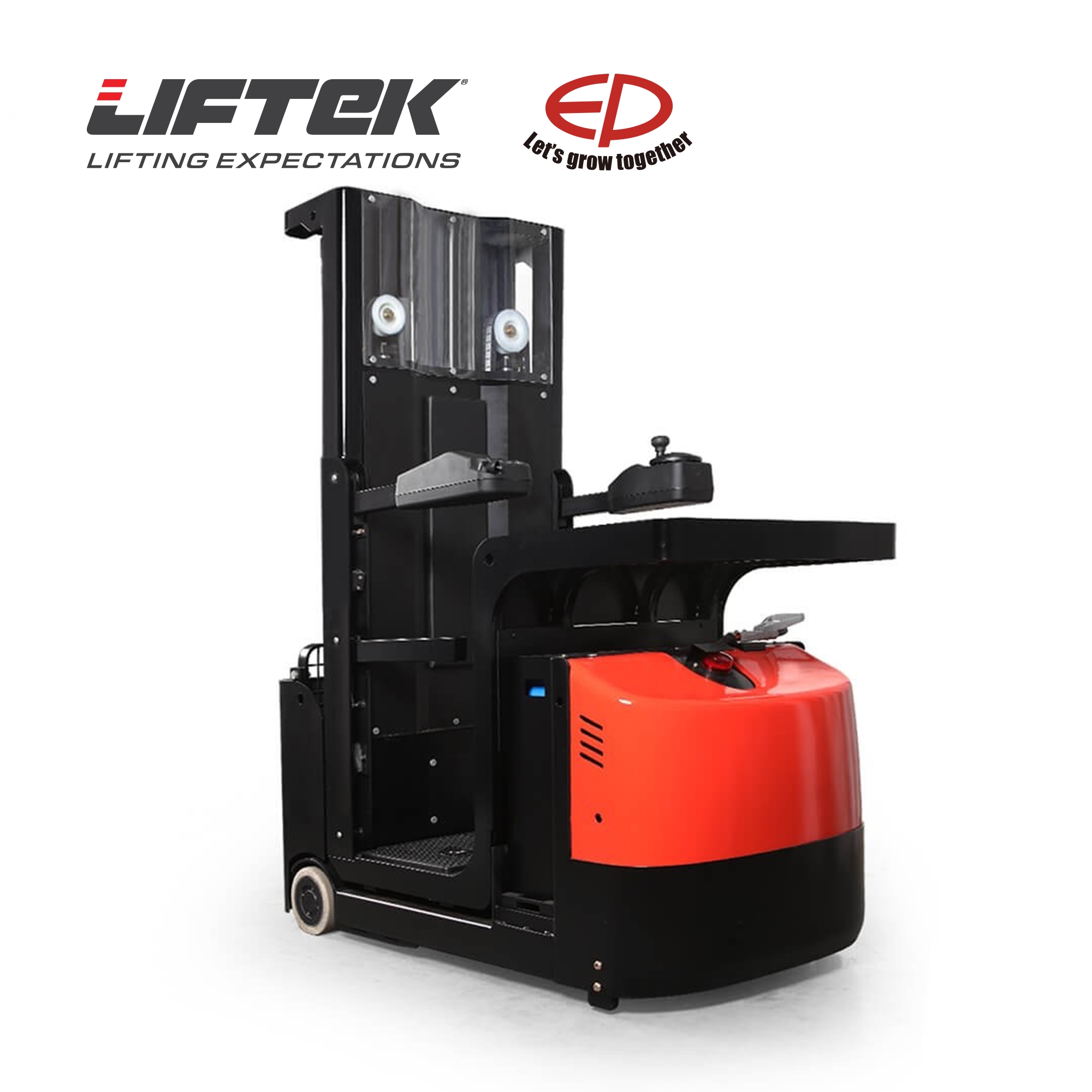

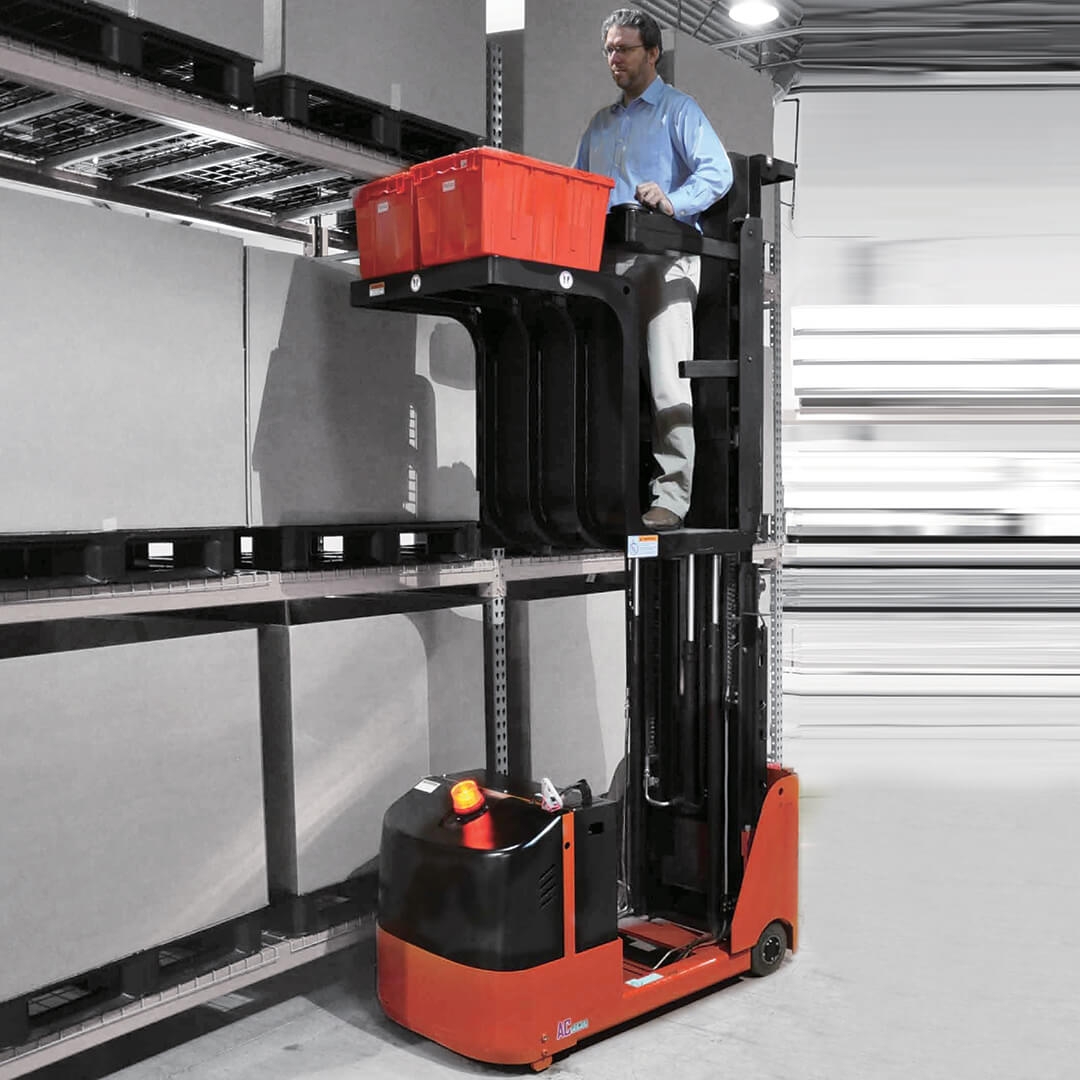

Liftek EP JX1 High Volume Vertical Order Picker | 6.5m Pick Height | 500kg

FAST, EFFICIENT, PRECISE PROFESSIONAL ORDER PICKER FOR LOADS UP TO 500KG

Truck width only 840mm

Pick height of 6.5 meters. Maintenance free AGM battery system comes as standard.

• Made for high volume order picking
• Heavy duty body and super strong chasis
• Safety first design with four safety switch locations
• Ideal for warehouse and e-commerce environments
• Suitable for narrow spaces
• Built-in charger unit for system protection
• Finger tip controls
• Power source: 224AH AGM maintenance-free battery pack
• (comes as standard)
• Optional: larger industrial battery with external charger available
• Super simple battery exchange
• Drive wheel motor rating: 1.5kW
• Lift motor rating: 2.2kW
• Elevates operator up to 4880mm
• Turns around in as little as 1385mm
• Can be driven while lifted and diagonally for versatile manoeuvrability
• Travel powered by high-efficiency AC drive motor
• Programmable through onboard LCD dash

JX1 Premium Features:

• Finely Tuned Turn Radius

180 degree articulating driveline with 1385mm minimum turning radius.

• Variable Speed Control

Electronic power steering with variable speed control.

• Steel Mast and Beam Construction

Premium steel i-Beam mast construction and steel frame.

• Heavy Duty Picking Platform

The JX1 can carry a total capacity of up to 500Kg (227kg front tray, 136kg operator and 137kg rear tray).

Quick Specs:

Weight 1530kg (inc. battery). Fully Electric. Max Pick Height of 6.5 meters. Max Platform Capacity 500KG.

product code: LTJX1
